U U-SEALS

Name: U U-SEALS
SKU: U100-12.00-150D
Availability: InStock

Price range: $4.24 through $582.49

Style 800 U-seals are molded from tough, abrasion-resistant polyurethane. The four lobed expander ring energizes the sealing lips, even at zero pressure, to help prevent 'weeping' when the system is idle.

FLUOROCARBON = “V”

SEAL INFORMATION
MATERIAL	95A URETHANE \| 95A FLUOROCARBON
TEMPERATURE RANGE	-65° to +220° F \| -20° to +400° F
PRESSURE RANGE	0 to 5,000 PSI \| 0 to 2,000 PSI
SPEED	3 FT/SEC

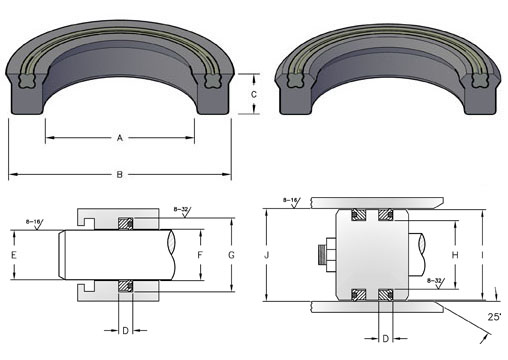

PART NUMBER	(Prefix)(CS) – (Inside Dia) – (Height)
	Standard – Height and cross section are equal, thus giving a square seal. Utilizes type 'D' lip. Typical Part Number U25-2.50
	Deep – Utilizes the same 'D' lip, but the seal height is greater than the cross section, thus giving a rectangular shape. Typical Part Number U25-2.50-37D
	Type SQB – Same dimensions as the Standard seal. Beveled lip design provides better film breaking. Utilizes type 'B' lip. Typical Part Number U25-2.50-SQB
	Type B – Same dimensions as the Deep seal. Beveled lip design provides better film breaking. Utilizes type 'B' lip. Typical Part Number U25-2.50-37B

SKU: U100-12.00-150D Category: Uncategorized

SKU	ID	OD	HEIGHT	CROSS SECTION	Price
U100-10.00	10	12	1	1	$238.26
U100-12.00-150D	12	14	1.5	1	$405.14
U100-14.00-150D	14	16	1.5	1	$358.09
U100-15.00	15	14	1	1	$366.42
U100-16.00	16	18	1	1	$444.18
U100-18.00	18	20	1	1	$490.62
U100-20.00	20	22	1	1	$582.49
U12-0.12	0.125	0.375	0.125	0.125	$4.51
U12-0.14	0.1406	0.3906	0.125	0.125	$4.51
U12-0.18	0.1875	0.4375	0.125	0.125	$4.51
U12-0.18-25B	0.1875	0.4375	0.25	0.125	$4.66
U12-0.25-25B	0.25	0.25	0.25	0.125	$4.78
U12-0.25V	0.25	0.25	0.125	0.125	$18.60
U12-0.28-25B	0.2812	0.5312	0.25	0.125	$5.04
U12-0.31-25B	0.3125	0.5625	0.25	0.125	$5.09
U12-0.31V	0.3125	0.5625	0.125	0.125	$18.60
UPU12-0.37	0.375	0.625	0.125	0.125	$15.87
U12-0.43-SQB	0.4375	0.6875	0.125	0.125	$4.51
U12-0.43-25B	0.4375	0.6875	0.25	0.125	$5.12
U12-0.50-25B	0.5	0.5	0.25	0.125	$5.26
UPU12-0.50-25B	0.5	0.75	0.25	0.125	$17.50
UPU12-0.50	0.5	0.75	0.125	0.125	$18.78
U12-0.56-SQB	0.5625	0.8125	0.125	0.125	$4.55
U12-0.56-25B	0.5625	0.8125	0.25	0.125	$6.05
UPU12-0.62-25B	0.625	0.875	0.25	0.125	$18.17
UPU12-0.62	0.625	0.875	0.125	0.125	$20.37
U12-0.68	0.6875	0.9375	0.125	0.125	$4.90
U12-0.68-25B	0.6875	0.9375	0.25	0.125	$5.50
UFN12-0.75-18P	0.75	1	0.1875	0.125	$5.76
UPU12-0.75-25B	0.75	1	0.25	0.125	$18.85
UPU12-0.75	0.75	1	0.125	0.125	$20.79
U12-0.81-SQB	0.8125	1.0625	0.125	0.125	$4.97
U12-0.87-25Z	0.875	1.125	0.25	0.125	$9.07
UPU12-0.87	0.875	1.125	0.125	0.125	$19.87
U12-0.93	0.9375	1.1875	0.125	0.125	$5.12
U12-0.93-25B	0.9375	1.1875	0.25	0.125	$6.05
UKR12-1.00	1	1.25	0.125	0.125	$6.05
UFN12-1.00-18P	1	1.25	0.1875	0.125	$6.33
UPU12-1.00-25B	1	1.25	0.25	0.125	$20.33
U12-1.06-25B	1.0625	1.3125	0.25	0.125	$6.18
U12-1.06-SQB	1.0625	1.3125	0.125	0.125	$5.37
U12-1.12-25DZ	1.125	1.375	0.25	0.125	$9.61
UKR12-1.12	1.125	1.375	0.125	0.125	$6.10
U12-1.18	1.1875	1.4375	0.125	0.125	$5.50
U12-1.18-18B	1.1875	1.4375	0.1875	0.125	$6.69
U12-1.18-25B	0.1875	1.4375	0.25	0.125	$6.69
UFN12-1.25-18P	1.25	1.5	0.1875	0.125	$8.56
UFN12-1.25-25P	1.25	1.5	0.25	0.125	$12.21
U12-1.25-25BHT	1.525	1.5	0.25	0.125	$10.43
UPU12-1.25	1.25	1.5	0.125	0.125	$19.95
U12-1.31	1.3125	1.5625	0.125	0.125	$6.03
U12-1.31-18B	1.3125	1.5625	0.1875	0.125	$6.80
U12-1.37-18D	1.375	1.625	0.1875	0.125	$6.80
UPU12-1.37-25D	1.375	1.625	0.25	0.125	$30.90
U12-1.37-SQB	0.375	1.625	0.125	0.125	$6.05
U12-1.37V	1.375	1.625	0.125	0.125	$22.44
U12-1.43-25B	1.4375	1.6875	0.25	0.125	$6.98
U12-1.43-SQB	1.4375	1.6875	0.125	0.125	$7.06
UFN12-1.50-18P	1.5	1.75	0.1875	0.125	$9.44
U12-1.50-25BV	1.5	1.75	0.25	0.125	$27.27
UPU12-1.50	1.5	1.75	0.125	0.125	$21.44
U12-1.56	1.5625	1.8125	0.125	0.125	$6.31
U12-1.62-SQB	1.625	1.875	0.125	0.125	$6.61
U12-1.68	1.6875	1.9375	0.125	0.125	$14.57
U12-1.75-25D	1.75	2	0.25	0.125	$7.79
U12-1.75V	1.75	2	0.125	0.125	$26.94
U12-1.87	1.875	2.125	0.125	0.125	$6.93
U12-2.00V	2	2.25	0.125	0.125	$29.43
U12-2.00-25D	2	2.25	0.25	0.125	$11.37
U12-2.12	2.125	2.375	0.125	0.125	$7.28
U12-2.12-25D	2.125	2.375	0.25	0.125	$11.43
U12-2.25	2.25	2.5	0.125	0.125	$7.46
U12-2.25-37D	2.25	2.5	0.375	0.125	$9.56
U12-2.37	2.375	2.625	0.125	0.125	$7.29
U12-2.37-18B	2.375	2.625	0.1875	0.125	$7.69
U12-2.50	2.5	2.75	0.125	0.125	$7.83
U12-2.50-25B	2.5	2.75	0.25	0.125	$7.74
U12-2.75	2.75	3	0.125	0.125	$8.37
U12-2.75-25B	2.75	3	0.25	0.125	$9.48
U12-2.87	2.875	3.125	0.125	0.125	$9.48
U12-3.00	3	3.25	0.125	0.125	$8.90
U12-3.12	3.125	3.375	0.125	0.125	$14.87
U12-3.25	3.25	3.5	0.125	0.125	$9.33
U12-3.50	3.5	3.75	0.125	0.125	$10.21
U12-3.62-18B	3.625	3.875	0.1875	0.125	$12.52
U12-3.75	3.75	4	0.125	0.125	$14.71
U12-4.00	4	4.25	0.125	0.125	$15.19
U12-4.25	4.25	4.5	0.125	0.125	$15.26
U12-4.37	4.375	4.625	0.125	0.125	$15.44
U12-4.50	4.5	4.75	0.125	0.125	$19.31
U12-4.75	4.75	5	0.125	0.125	$19.93
UPU15-1.00	1	1.3125	0.1562	0.1562	$31.56
U15-1.00-23B	1	1.3125	0.234	0.1562	$7.11
U15-1.12	1.125	1.4375	0.1562	0.1562	$6.36
U15-1.18V	1.1875	1.5	0.1562	0.1562	$25.60
UKR15-1.25	1.25	1.5625	0.1562	0.1562	$6.37
UPU15-1.37	1.375	1.6875	0.1562	0.1562	$27.40
U15-1.37V	1.375	1.685	0.1562	0.1562	$27.27
U15-1.50-31DZ	1.5	1.8125	0.3125	0.1562	$15.15
U18-0.18-SQB	0.1875	0.5625	0.1875	0.1875	$7.97
U18-0.25-SQB	0.25	0.625	0.1875	0.1875	$4.72
U18-0.31-SQB	0.3125	0.6875	0.1875	0.1875	$4.69
U18-0.37V	0.375	0.75	0.1875	0.1875	$14.78
U18-0.37-31B	0.375	0.75	0.3125	0.1875	$5.45
U18-0.43	0.4375	0.8125	0.1875	0.1875	$4.92
U18-0.50	0.5	0.875	0.1875	0.1875	$4.92
U18-0.50-31BV	0.5	0.875	0.3125	0.1875	$33.48
U18-0.56	0.5625	0.9375	0.1875	0.1875	$9.51
U18-0.62-31D	0.625	1	0.3125	0.1875	$10.43
U18-0.62V	0.625	1	0.1875	0.1875	$20.67
U18-0.68	0.6875	1.0625	0.1875	0.1875	$5.19
UFN18-0.75-31P	0.75	1.125	0.3125	0.1875	$6.42
U18-0.75-SQB	0.75	1.125	0.1875	0.1875	$5.29
U18-0.81	0.8125	1.1875	0.1875	0.1875	$5.59
U18-0.81-31B	0.8125	1.1875	0.3125	0.1875	$6.33
U18-0.87-31B	0.875	1.25	0.3125	0.1875	$6.46
U18-0.87-SQB	0.875	1.25	0.1875	0.1875	$5.83
U18-0.93	0.9375	1.3125	0.1875	0.1875	$5.99
UFN18-1.00-25P	1	1.375	0.25	0.1875	$6.49
UPU18-1.00-31B	1	1.375	0.3125	0.1875	$21.75
U18-1.00-37B	1	1.375	0.375	0.1875	$6.73
UPU18-1.00	1	1.375	0.1875	0.1875	$21.64
U18-1.00V	1	1.37	0.1875	0.1875	$23.05
U18-1.06	1.0625	1.4375	0.1875	0.1875	$5.98
U18-1.06-31B	1.0625	1.4375	0.3125	0.1875	$6.58
U18-1.12-25B	1.125	1.5	0.25	0.1875	$6.79
UPU18-1.12-31B	1.125	1.5	0.3125	0.1875	$25.68
U18-1.12-37B	1.125	1.5	0.375	0.1875	$7.54
UPU18-1.12	1.125	1.5	0.1875	0.1875	$25.38
U18-1.18	1.1875	1.5625	0.1875	0.1875	$6.31
U18-1.18-25B	1.1875	1.5625	0.25	0.1875	$6.95
U18-1.18-31B	1.185	1.5625	0.3125	0.1875	$8.12
UFN18-1.25-25P	1.25	1.625	0.25	0.1875	$6.62
U18-1.25-26B	1.25	1.625	0.266	0.1875	$6.96
UPU18-1.25-31B	1.25	1.625	0.3125	0.1875	$23.40
U18-1.25-37Z	1.25	1.625	0.375	0.1875	$11.45
U18-1.25V	1.25	1.625	0.1875	0.1875	$25.30
U18-1.31	1.3125	1.6875	0.1875	0.1875	$6.79
U18-1.31-31BHT	1.3125	1.6875	0.3125	0.1875	$11.65
UPU18-1.37-25B	1.375	1.75	0.25	0.1875	$25.79
UPU18-1.37-31B	1.375	1.75	0.3125	0.1875	$52.64
U18-1.37-37B	1.375	1.75	0.375	0.1875	$7.69
UPU18-1.37	1.375	1.75	0.1875	0.1875	$24.28
U18-1.43	1.4375	1.8125	0.1875	0.1875	$6.95
U18-1.50-25BV	1.5	1.8725	0.25	0.1875	$29.24
U18-1.50-26B	1.5	1.8725	0.266	0.1875	$7.49
U18-1.50-29F	1.5	1.8725	0.2968	0.1875	$16.09
U18-1.50-31B	1.5	1.8725	0.3125	0.1875	$7.49
U18-1.50-37Z	1.5	1.8725	0.375	0.1875	$13.25
U18-1.50V	1.5	1.8725	0.1875	0.1875	$26.67
U18-1.56-37B	1.5625	1.9375	0.375	0.1875	$7.79
UPU18-1.62	1.625	2	0.1875	0.1875	$24.75
U18-1.62-25B	1.625	2	0.25	0.1875	$8.37
U18-1.62-31B	1.625	2	0.3125	0.1875	$8.37
UPU18-1.62-37B	1.625	2	0.375	0.1875	$30.18
U18-1.68	1.6875	2.0625	0.1875	0.1875	$7.45
UPU18-1.75	1.75	2.125	0.1875	0.1875	$25.51
U18-1.75-25Z	1.75	2.125	0.25	0.1875	$13.79
U18-1.75-26B	1.75	2.125	0.266	0.1875	$8.48
U18-1.75-31B	1.75	2.125	0.3125	0.1875	$8.84
UPU18-1.75-37B	1.75	2.125	0.375	0.1875	$28.29
U18-1.87-25D	1.875	2.25	0.25	0.1875	$9.40
U18-1.87-26B	1.875	2.25	0.266	0.1875	$8.96
U18-1.87-37Z	1.875	2.25	0.375	0.1875	$15.82
U18-1.87-SQB	1.875	2.25	0.1875	0.1875	$7.38
U18-2.00-25Z	2	2.375	0.25	0.1875	$15.96
U18-2.00-27D	2	2.375	0.27	0.1875	$11.53
U18-2.00-31B	2	2.375	0.3125	0.1875	$9.42
UPU18-2.00-37B	2	2.375	0.375	0.1875	$35.59
UPU18-2.00	2	2.375	0.1875	0.1875	$26.32
U18-2.06	2.0625	2.4375	0.1875	0.1875	$8.05
U18-2.12-25B	2.125	2.5	0.25	0.1875	$9.74
U18-2.12-26B	2.125	2.5	0.266	0.1875	$10.18
UFN18-2.12-31EI	2.125	2.5	0.3125	0.1875	$13.19
UPU18-2.12-37B	2.125	2.5	0.375	0.1875	$32.75
UPU18-2.12	2.125	2.5	0.1875	0.1875	$43.29
U18-2.12V	2.125	2.5	0.185	0.1875	$29.12
U18-2.18-37B	2.1875	2.5625	0.375	0.1875	$10.70
U18-2.25-31B	2.25	2.625	0.3125	0.1875	$11.11
U18-2.25-37B	2.25	2.625	0.375	0.1875	$10.53
U18-2.25-37DZ	2.25	2.62	0.375	0.1875	$14.94
UKR18-2.25	2.25	2.625	0.1875	0.1875	$7.14
U18-2.37-SQB	2.375	2.75	0.1875	0.1875	$8.05
U18-2.37-25B	2.375	2.75	0.25	0.1875	$11.43
U18-2.37-37B	2.375	2.75	0.375	0.1875	$11.43
U18-2.37-50B	2.375	2.75	0.5	0.1875	$17.89
U18-2.50-25B	2.5	2.875	0.25	0.1875	$11.83
U18-2.50-31B	2.5	2.875	0.3125	0.1875	$11.34
UPU18-2.50-37B	2.5	2.875	0.375	0.1875	$42.99
U18-2.50V	2.5	2.875	0.1875	0.1875	$33.67
U18-2.62-25B	2.625	3	0.25	0.1875	$12.10
U18-2.62-37D	2.625	3	0.375	0.1875	$13.89
U18-2.62V	2.625	3	0.1875	0.1875	$33.56
U18-2.75V	2.75	3.125	0.1875	0.1875	$34.91
U18-2.75-37B	2.75	3.125	0.375	0.1875	$12.34
U18-2.87V	2.875	3.25	0.1875	0.1875	$34.63
U18-2.87-25B	2.875	3.25	0.25	0.1875	$13.83
U18-2.87-37B	2.875	3.25	0.375	0.1875	$13.23
U18-3.00-SQB	3	3.375	0.1875	0.1875	$9.78
UFN18-3.00-31P	3	3.375	0.3125	0.1875	$14.74
UPU18-3.00-37B	3	3.375	0.375	0.1875	$54.64
U18-3.00V	3.125	3.375	0.1875	0.1875	$39.07
U18-3.12-37D	3.125	3.5	0.375	0.1875	$17.08
U18-3.12-SQB	3.125	3.5	0.1875	0.1875	$10.49
U18-3.25	3.25	3.625	0.1875	0.1875	$11.07
U18-3.25-37BV	3.25	3.625	0.375	0.1875	$61.12
U18-3.37-37B	3.375	3.75	0.375	0.1875	$16.30
U18-3.37-SQB	3.375	3.75	0.1875	0.1875	$11.72
U18-3.50-SQB	3.5	3.875	0.1875	0.1875	$12.25
UPU18-3.50-37B	3.5	3.875	0.375	0.1875	$54.84
U18-3.62-37B	3.625	4	0.375	0.1875	$18.06
UKP18-4.00	3.625	4	0.1875	0.1875	$9.13
U18-3.75	3.75	4.125	0.1875	0.1875	$13.49
U18-3.75-37B	3.75	4.125	0.375	0.1875	$19.11
U18-3.87	3.875	4.25	0.1875	0.1875	$19.04
U18-3.87-37B	3.875	4.25	0.375	0.1875	$20.00
U18-4.00	4	4.25	0.1875	0.1875	$16.56
U18-4.00-37ZF	4	4.375	0.375	0.1875	$34.81
U18-4.00-SQB	4	4.375	0.1875	0.1875	$14.74
U18-4.12	4.125	4.5	0.1875	0.1875	$15.56
U18-4.12-37D	4.125	4.5	0.375	0.1875	$22.00
U18-4.25	4.25	4.625	0.1875	0.1875	$16.12
U18-4.25-37B	4.25	4.625	0.375	0.1875	$21.83
U18-4.37	4.375	4.75	0.1875	0.1875	$16.58
U18-4.37-37B	4.375	4.75	0.375	0.1875	$22.14
U18-4.50	4.5	4.875	0.1875	0.1875	$16.64
U18-4.50-37B	4.5	4.875	0.375	0.1875	$24.20
U18-4.62	4.625	5	0.1875	0.1875	$17.04
U18-4.62-37D	4.625	5	0.375	0.1875	$24.24
U18-4.75	4.75	5.125	0.1875	0.1875	$17.73
U18-4.87	4.875	5.25	0.1875	0.1875	$18.79
U18-5.00	5	5.375	0.1875	0.1875	$21.92
U18-5.00-31D	5	5.375	0.3125	0.1875	$30.85
U18-5.00-37D	5	5.375	0.375	0.1875	$30.85
U18-6.00	6	6.375	0.1875	0.1875	$23.13
U21-2.81V	2.8125	3.25	0.2187	0.2187	$53.96
U21-3.00	3	3.4375	0.2187	0.2187	$13.55
U25-0.25	0.25	0.75	0.25	0.25	$6.46
U25-0.31	0.3125	0.8125	0.25	0.25	$6.34
U25-0.37	0.375	0.875	0.25	0.25	$6.46
U25-0.37-37DZ	0.375	0.875	0.375	0.25	$11.18
U25-0.43	0.4375	0.9375	0.25	0.25	$6.46
U25-0.50	0.5	1	0.25	0.25	$6.46
U25-0.50-37B	0.5	1	0.375	0.25	$6.70
U25-0.56	0.5625	1.0625	0.25	0.25	$6.46
UPU25-0.62	0.625	1.125	0.25	0.25	$21.61
UFN25-0.62-37P	0.625	1.125	0.375	0.25	$7.38
U25-0.68	0.6875	1.1875	0.25	0.25	$6.46
U25-0.75-SQB	0.75	1.25	0.25	0.25	$6.46
UFN25-0.75-37P	0.75	1.25	0.375	0.25	$5.30
U25-0.81	0.8125	1.3125	0.25	0.25	$6.15
U25-0.81-37B	0.8125	1.3125	0.375	0.25	$8.04
UPU25-0.87-37B	0.875	1.375	0.375	0.25	$24.38
UFN25-0.87-25EI	0.875	1.375	0.25	0.25	$9.75
U25-0.93	0.9375	1.4375	0.25	0.25	$6.60
UFN25-1.00-37UWO	1	1.5	0.375	0.25	$9.81
U25-1.00-56DZ	1	1.5	0.6525	0.25	$10.14
UPU25-1.00	1	1.5	0.25	0.25	$25.81
U25-1.06	1.0625	1.5625	0.25	0.25	$6.77
U25-1.12-SQB	1.125	1.625	0.25	0.25	$9.27
UFN25-1.12-37P	1.125	1.625	0.375	0.25	$7.67
U25-1.18	1.875	1.6875	0.25	0.25	$6.92
UPU25-1.25-37B	1.25	1.75	0.375	0.25	$24.50
U25-1.25V	1.25	1.75	0.25	0.25	$25.30
U25-1.31	1.3125	1.8125	0.25	0.25	$7.26
U25-1.31-37B	1.3125	1.8125	0.375	0.25	$7.59
U25-1.37-SQB	1.375	1.875	0.25	0.25	$7.57
U25-1.37-37BV	1.375	1.875	0.375	0.25	$32.71
U25-1.43	1.4375	1.9375	0.25	0.25	$7.76
U25-1.50-31B	1.5	2	0.3125	0.25	$8.63
UPU25-1.50-37B	1.5	2	0.375	0.25	$29.05
U25-1.50-50B	1.5	2	0.5	0.25	$9.07
UPU25-1.50	1.5	2	0.25	0.25	$25.55
U25-1.62	1.625	2.125	0.25	0.25	$8.49
U25-1.62-37B	1.625	2.125	0.375	0.25	$9.40
UPU25-1.75	1.75	2.25	0.25	0.25	$32.23
U25-1.75-31ZF	1.75	2.25	0.3125	0.25	$16.41
UPU25-1.75-37B	1.75	2.25	0.375	0.25	$31.71
U25-1.87	1.875	2.375	0.25	0.25	$9.40
U25-1.87-37B	7.875	2.375	0.375	0.25	$10.35
U25-10.00	10	2.5	0.25	0.25	$47.73
U25-10.00-56B	10	2.5	0.5625	0.25	$76.69
U25-10.25	10.25	10.75	0.25	0.25	$61.16
U25-2.00V	2	2.5	0.25	0.25	$35.64
UFN25-2.00-31PWO	2	2.5	0.3125	0.25	$17.31
UPU25-2.00-37D	2	2.5	0.375	0.25	$34.52
U25-2.12	2.125	2.625	0.25	0.25	$10.41
U25-2.12-37B	2.125	2.625	0.375	0.25	$11.49
U25-2.18-37B	2.1875	2.6875	0.375	0.25	$12.25
U25-2.25V	2.25	2.75	0.25	0.25	$43.18
UPU25-2.25-37B	2.25	2.75	0.375	0.25	$43.92
U25-2.37	2.375	2.875	0.25	0.25	$11.48
U25-2.37-37Z	2.375	2.875	0.375	0.25	$20.68
UPU25-2.50	2.5	3	0.25	0.25	$38.27
UFN25-2.50-31P	2.5	3	0.3125	0.25	$11.80
UPU25-2.50-37B	2.5	3	0.375	0.25	$42.73
U25-2.50-50B	2.5	3	0.5	0.25	$12.77
U25-2.62	2.625	3.125	0.25	0.25	$12.80
U25-2.62-37Z	2.625	3.125	0.375	0.25	$20.68
UPU25-2.75-37B	2.75	3.25	0.375	0.25	$46.74
U25-2.75-50B	2.75	3.25	0.5	0.25	$14.15
UPU25-2.75	2.75	3.25	0.25	0.25	$46.81
U25-2.75V	2.75	3.375	0.25	0.25	$46.60
U25-2.87	2.875	3.375	0.25	0.25	$13.46
U25-2.87-37B	2.875	3.5	0.375	0.25	$14.48
UPU25-3.00	3	3.5	0.25	0.25	$73.16
UPU25-3.00-37B	3	3.5	0.375	0.25	$50.45
U25-3.12	3.125	3.625	0.25	0.25	$14.54
U25-3.12-37B	3.125	3.625	0.375	0.25	$18.70
U25-3.25V	3.25	3.75	0.25	0.25	$56.49
U25-3.25-37Z	3.25	3.75	0.375	0.25	$27.90
U25-3.25-50B	3.25	3.75	0.5	0.25	$16.92
U25-3.37-SQB	3.375	3.875	0.25	0.25	$15.46
UPU25-3.50	3.5	4	0.25	0.25	$53.76
UPU25-3.50-37B	3.5	4	0.375	0.25	$58.27
U25-3.50-50D	3.5	4	0.5	0.25	$20.21
U25-3.62	3.625	4.125	0.25	0.25	$16.47
U25-3.69-50B	3.69	4.19	0.5	0.25	$22.52
U25-3.75-37Z	3.75	4.25	0.375	0.25	$30.68
U25-3.75-50B	3.75	4.25	0.5	0.25	$18.38
U25-3.75-56DZ	3.75	4.25	0.5625	0.25	$49.66
U25-3.75-SQB	3.75	4.25	0.25	0.25	$17.04
U25-3.87	4	4.375	0.25	0.25	$17.49
U25-4.00-37Z	4	4.5	0.375	0.25	$35.51
U25-4.00-50D	4	4.5	0.5	0.25	$20.00
UPU25-4.00-56B	4	4.5	0.5625	0.25	$75.79
U25-4.00V	4	4.5	0.25	0.25	$67.97
U25-4.12	4.125	4.625	0.25	0.25	$18.56
U25-4.12-37B	4.125	4.625	0.375	0.25	$21.83
U25-4.25	4.25	4.75	0.25	0.25	$18.99
U25-4.25-37B	4.25	4.75	0.375	0.25	$23.93
U25-4.25-56BV	4.25	4.75	0.5625	0.25	$90.16
U25-4.37-56B	4.375	4.875	0.5625	0.25	$23.56
U25-4.37-SQB	4.375	4.875	0.25	0.25	$19.45
UPU25-4.50	4.5	5	0.25	0.25	$64.14
U25-4.50-31B	4.5	5	0.3125	0.25	$23.71
U25-4.50-37Z	4.5	5	0.375	0.25	$40.76
U25-4.50-50D	4.5	5	0.5	0.25	$23.71
U25-4.50-56DZ	4.5	5	0.5625	0.25	$34.29
U25-4.50-62B	4.5	5	0.625	0.25	$27.96
U25-4.62-56B	4.625	5.125	0.5625	0.25	$25.22
U25-4.62-SQB	4.625	5.125	0.25	0.25	$19.61
U25-4.75	4.75	5.25	0.25	0.25	$20.11
U25-4.75-37B	4.75	5.25	0.375	0.25	$26.04
U25-4.75-56BV	4.75	5.25	0.5625	0.25	$93.35
U25-4.87	4.875	5.375	0.25	0.25	$21.62
U25-5.00V	5	5.5	0.25	0.25	$79.32
U25-5.00-37BV	5	5.5	0.375	0.25	$103.27
U25-5.00-50D	5	5.5	0.5	0.25	$27.44
U25-5.00-56Z	5	5.5	0.5625	0.25	$41.35
U25-5.12	5.125	5.625	0.25	0.25	$22.54
U25-5.25	5.25	5.75	0.25	0.25	$21.75
U25-5.25-37B	5.25	5.75	0.375	0.25	$31.21
U25-5.25-56DZ	5.25	5.75	0.5625	0.25	$49.66
U25-5.37	5.375	5.875	0.25	0.25	$23.61
U25-5.50V	5.5	6	0.25	0.25	$95.24
U25-5.50-37B	5.5	6	0.375	0.25	$32.03
U25-5.50-50D	5.5	6	0.5	0.25	$33.65
U25-5.50-56D	5.5	6	0.5625	0.25	$32.03
U25-5.50-62D	5.5	6	0.625	0.25	$32.26
U25-5.62	5.625	6.125	0.25	0.25	$25.25
U25-5.75	5.75	6.25	0.25	0.25	$25.77
U25-5.75-37B	5.75	6.25	0.375	0.25	$34.87
U25-5.75-56B	5.75	6.25	0.5625	0.25	$34.87
U25-6.00	6	6.5	0.25	0.25	$26.27
U25-6.00-37B	6	6.5	0.375	0.25	$35.87
U25-6.00-56D	6	6.5	0.5625	0.25	$40.38
U25-6.25	6.25	6.75	0.25	0.25	$26.31
U25-6.25-37B	6.25	6.75	0.375	0.25	$39.63
U25-6.50-37D	6.5	7	0.375	0.25	$38.42
U25-6.50-56B	6.5	7	0.5625	0.25	$36.86
U25-6.50-SQB	6.75	7	0.25	0.25	$27.67
U25-6.75	6.75	7.25	0.25	0.25	$28.27
U25-6.75-37B	6.75	7.25	0.375	0.25	$38.42
U25-6.75-56D	6.75	7.25	0.5625	0.25	$38.42
U25-7.00	7	7.5	0.25	0.25	$29.38
U25-7.00-37B	7	7.5	0.375	0.25	$35.24
U25-7.00-56B	7	7.5	0.5625	0.25	$39.92
U25-7.25	7.25	7.75	0.25	0.25	$29.34
U25-7.50-56B	7.5	8	0.5625	0.25	$45.22
U25-7.50-SQB	7.5	8	0.25	0.25	$31.36
U25-7.75	7.75	8.25	0.25	0.25	$31.08
U25-8.00	8	8.5	0.25	0.25	$32.26
U25-8.00-56B	8	8.5	0.5625	0.25	$48.30
U25-8.12-56B	8.125	8.625	0.5625	0.25	$49.50
U25-8.25-56B	8.25	8.75	0.5625	0.25	$49.89
U25-8.50	8.5	9	0.25	0.25	$37.96
U25-8.50-56B	8.5	9	0.5625	0.25	$51.73
U25-9.00	9	9.5	0.25	0.25	$38.18
U25-9.50	9.5	10	0.25	0.25	$38.96
U25-9.50-56B	9.5	10	0.5625	0.25	$53.52
U25-9.75	9.75	10.25	0.25	0.25	$44.11
U27-1.97-50B	1.97	2.52	0.5	0	$26.06
U27-2.97-50B	2.97	3.52	0.5	0	$28.46
U27-3.97-50B	3.97	4.52	0.5	0	$40.01
U27-4.97-50B	4.97	5.52	0.5	0	$36.39
U28-1.00	1	1.5625	0.2812	0.2812	$7.08
U28-2.20-50B	2.2	2.77	0.5	0.2812	$14.96
U28-3.18-50B	3.1875	3.75	0.5	0.2812	$20.65
U28-3.20-50B	3.2	3.77	0.5	0.2812	$20.65
U28-5.43V	5.4375	6	0.2812	0.2812	$154.89
U28-5.43-56B	5.4375	6	0.5625	0.2812	$35.67
U31-0.25	0.25	0.875	0.3125	0.3125	$6.58
U31-0.37	0.375	1	0.3125	0.3125	$6.88
U31-0.43	0.4375	1.0625	0.3125	0.3125	$6.98
U31-0.50	0.5	1.125	0.3125	0.3125	$7.23
U31-0.62	0.625	1.25	0.3125	0.3125	$7.20
U31-0.75	0.75	1.375	0.3125	0.3125	$7.57
U31-0.75-50B	0.75	1.375	0.5	0.3125	$7.84
U31-0.87	0.875	1.5	0.3125	0.3125	$7.69
UPU31-1.00	1	1.625	0.3125	0.3125	$32.73
U31-1.00-37B	1	1.625	0.375	0.3125	$9.72
U31-1.00-50B	1	1.625	0.5	0.3125	$8.13
U31-1.12-37B	1.125	1.75	0.375	0.3125	$8.18
U31-1.12-SQB	1.125	1.75	0.3125	0.3125	$7.91
U31-1.18	1.1875	1.8125	0.3125	0.3125	$7.91
UPU31-1.25	1.25	1.875	0.3125	0.3125	$33.83
U31-1.25-37B	1.25	1.875	0.375	0.3125	$8.73
U31-1.25-50D	1.25	1.875	0.5	0.3125	$22.57
UFN31-1.37-37P	1.375	2	0.375	0.3125	$8.12
UPU31-1.37-50B	1.375	2	0.5	0.3125	$31.89
U31-1.37-SQB	1	2	0.3125	0.3125	$8.73
UPU31-1.37	1.375	2	0.3125	0.3125	$31.12
U31-1.50	1.375	2.125	0.3125	0.3125	$8.90
U31-1.50-37B	1.5	2.125	0.375	0.3125	$10.48
UFN31-1.50-43EI	1.5	2.125	0.4375	0.3125	$11.07
U31-1.50-50D	1.5	2.125	0.5	0.3125	$10.48
UFN31-1.50-31P	1.5	2.125	0.3125	0.3125	$13.29
U31-1.62	1.625	2.25	0.3125	0.3125	$9.95
U31-1.62-37B	1.625	2.25	0.375	0.3125	$11.06
U31-1.62-50B	1.625	2.25	0.5	0.3125	$10.79
U31-1.68	1.6875	2.3125	0.3125	0.3125	$17.57
U31-1.75V	1.75	2.375	0.3125	0.3125	$40.10
U31-1.75-37B	1.75	2.375	0.75	0.3125	$11.64
UPU31-1.75-50B	1.75	2.375	0.5	0.3125	$44.63
U31-1.87	1.875	2.5	0.3125	0.3125	$10.81
UFN31-1.87-37P	1.875	2.5	0.375	0.3125	$12.22
U31-1.87-50Z	1.875	2.5	0.5	0.3125	$20.95
U31-1.93	1.9375	2.5625	0.3125	0.3125	$11.07
U31-2.00V	2	2.625	0.3125	0.3125	$44.83
U31-2.00-37B	2	2.625	0.375	0.3125	$14.82
UPU31-2.00-50B	2	2.625	0.5	0.3125	$41.71
U31-2.12-50B	2.125	2.75	0.5	0.3125	$13.55
U31-2.12-SQB	2.125	2.75	0.3125	0.3125	$12.43
UPU31-2.25	2.25	2.875	0.3125	0.3125	$49.37
U31-2.25-50B	2.25	2.875	0.5	0.3125	$13.95
UPU31-2.37	2.375	3	0.3125	0.3125	$49.46
U31-2.37-50D	2.375	3	0.5	0.3125	$16.80
UPU31-2.50	2.5	3.125	0.3125	0.3125	$45.77
U31-2.50-50DZL	2.5	3.125	0.5	0.3125	$22.13
U31-2.56	2.5625	3.1875	0.3125	0.3125	$13.95
U31-2.62	2.625	3.25	0.3125	0.3125	$14.82
U31-2.62-50BV	2.625	3.25	0.5	0.3125	$46.09
U31-2.75V	2.75	3.375	0.3125	0.3125	$60.62
U31-2.75-50BV	2.75	3.375	0.5	0.3125	$63.91
U31-2.87	2.875	3.5	0.3125	0.3125	$15.97
U31-2.87-50B	2.875	3.5	0.5	0.3125	$17.41
UPU31-3.00	3	3.625	0.3125	0.3125	$63.43
U31-3.00-37B	3	3.625	0.375	0.3125	$18.29
U31-3.00-50DZLF	3	3.625	0.5	0.3125	$32.63
U31-3.12-SQB	3.125	3.75	0.3125	0.3125	$16.47
U31-3.25V	3.25	3.875	0.3125	0.3125	$67.53
U31-3.25-50B	3.25	3.875	0.5	0.3125	$19.61
U31-3.37	3.375	4	0.3125	0.3125	$17.79
U31-3.37-50B	3.375	4	0.5	0.3125	$19.40
U31-3.37-62B	3.375	4	0.625	0.3125	$19.71
U31-3.50V	3.5	4.125	0.3125	0.3125	$72.91
U31-3.50-50D	3.5	4.125	0.5	0.3125	$21.17
U31-3.62	3.625	4.25	0.3125	0.3125	$19.63
U31-3.62-50B	3.625	4.25	0.5	0.3125	$21.83
U31-3.75	3.75	4.375	0.3125	0.3125	$19.62
U31-3.75-37B	3.75	4.375	0.375	0.3125	$22.53
U31-3.75-50B	3.75	4.375	0.5	0.3125	$22.53
U31-3.75-62B	3.75	4.375	0.625	0.3125	$23.44
U31-3.87	3.875	4.5	0.3125	0.3125	$20.27
U31-3.87-50B	3.875	4.5	0.5	0.3125	$23.44
U31-4.00V	4	4.625	0.3125	0.3125	$86.38
U31-4.00-56B	4	4.625	0.5625	0.3125	$22.92
U31-4.12	4.125	4.75	0.3125	0.3125	$21.57
U31-4.12-56B	4.125	4.75	0.5625	0.3125	$23.44
U31-4.25	4.25	4.875	0.3125	0.3125	$22.22
U31-4.25-56B	4.25	4.875	0.5625	0.3125	$24.10
U31-4.37V	4.375	5	0.3125	0.3125	$87.53
U31-4.37-50DV	4.375	5	0.5	0.3125	$97.11
U31-4.37-56B	4.375	5	0.5625	0.3125	$25.94
U31-4.50	4.5	5.125	0.3125	0.3125	$23.44
U31-4.50-50B	4.5	5.125	0.5	0.3125	$26.70
U31-4.50-62Z	4.5	5.125	0.625	0.3125	$42.02
U31-4.62-62B	4.625	5.25	0.625	0.3125	$28.04
U31-4.75	4.75	5.375	0.3125	0.3125	$24.64
U31-4.75-62B	4.75	5.375	0.625	0.3125	$29.10
U31-4.87	4.875	5.5	0.3125	0.3125	$25.29
U31-5.00	5	5.625	0.3125	0.3125	$25.74
U31-5.00-62D	5	5.625	0.625	0.3125	$33.13
U31-5.12	5.125	5.75	0.3125	0.3125	$26.12
U31-5.25	5.25	5.875	0.3125	0.3125	$26.85
U31-5.25-62B	5.25	5.875	0.625	0.3125	$33.51
U31-5.37-62B	5.375	6	0.625	0.3125	$33.21
UPU31-5.37	5.375	6	0.3125	0.3125	$91.95
U31-5.50-62B	5.5	6.125	0.625	0.3125	$34.76
U31-5.50-SQB	5.5	6.125	0.3125	0.3125	$28.51
U31-5.62	5.625	6.25	0.3125	0.3125	$35.36
U31-5.75-62B	5.75	6.375	0.625	0.3125	$37.98
U31-5.87	5.875	6.5	0.3125	0.3125	$29.73
U31-6.00	6	6.625	0.3125	0.3125	$30.26
U31-6.00-62B	6	6.625	0.625	0.3125	$38.09
U31-6.12	6.125	6.75	0.3125	0.3125	$30.36
U31-6.25	6.25	6.875	0.3125	0.3125	$31.37
U31-6.37V	6.375	7	0.3125	0.3125	$129.95
U31-6.37-62D	6.375	7	0.625	0.3125	$59.86
U31-6.50	6.5	7.125	0.3125	0.3125	$31.97
U31-6.50-62B	6.5	7.125	0.625	0.3125	$42.12
U31-6.62	6.625	7.25	0.3125	0.3125	$32.44
U31-7.00-62B	7	7.625	0.625	0.3125	$46.05
U31-7.37V	7.375	8	0.3125	0.3125	$135.08
U31-8.00-62B	8	8.625	0.625	0.3125	$55.55
U34-9.31	9.3125	10	0.3437	0.3497	$68.70
U37-0.50	0.5	1.25	0.375	0.375	$8.90
U37-0.75	0.75	1.5	0.375	0.375	$9.44
U37-0.81	0.8125	1.5625	0.375	0.375	$9.95
U37-0.87	0.875	1.625	0.375	0.375	$10.05
U37-0.93	0.9387	1.6875	0.375	0.375	$9.75
U37-1.00	1	1.75	0.375	0.375	$10.35
U37-1.00-62D	1	1.75	0.625	0.375	$10.35
U37-1.12	1.125	1.875	0.375	0.375	$10.74
U37-1.25	1.25	2	0.375	0.375	$11.25
U37-1.25-62D	1.25	2	0.625	0.375	$12.57
U37-1.37	1.375	2.125	0.375	0.375	$11.95
U37-1.50	1.5	2.25	0.375	0.375	$12.17
U37-1.50-50B	1.5	2.25	0.5	0.375	$13.66
U37-1.50-62B	1.5	2.25	0.625	0.375	$14.54
U37-1.56	1.5625	2.3125	0.35	0.375	$13.18
U37-1.62-62B	1.625	2.375	0.625	0.375	$14.16
U37-1.62-SQB	1.625	2.375	0.375	0.375	$13.63
U37-1.75	1.75	2.5	0.375	0.375	$13.87
U37-1.75-62Z	1.75	2.5	0.625	0.375	$24.30
U37-1.87	1.875	2.625	0.375	0.375	$15.19
U37-10.00-62B	10	10.75	0.625	0.375	$104.82
U37-10.50-62B	10.5	11.25	0.625	0.375	$131.00
U37-11.00-62B	11	11.75	0.625	0.375	$118.48
U37-11.25	11.25	12	0.375	0.375	$90.92
U37-11.25-62B	11.25	12	0.625	0.375	$122.21
U37-12.00-62B	12	12.75	0.625	0.375	$139.68
U37-12.25	12.25	13	0.375	0.375	$107.33
U37-13.25	13.25	14	0.375	0.375	$95.86
U37-14.25-62B	14.25	15	0.625	0.375	$206.61
U37-19.50	19.5	20.25	0.375	0.375	$155.58
U37-2.00-50B	2	2.75	0.5	0.375	$17.58
U37-2.00-62B	2	2.75	0.625	0.375	$17.58
U37-2.00-SQB	2	2.75	0.375	0.375	$15.95
U37-2.12	2.125	2.875	0.375	0.375	$16.26
UFN37-2.25-37P	2.25	3	0.375	0.375	$13.44
UFN37-2.25-50P	2.25	3	0.5	0.375	$12.82
U37-2.25-62D	2.25	3	0.625	0.375	$19.61
U37-2.37	2.375	3.125	0.375	0.375	$18.15
U37-2.50-50B	2.5	3.25	0.5	0.375	$20.63
U37-2.50-62Z	2.5	3.25	0.625	0.375	$26.13
UFN37-2.50-37P	2.5	3.25	0.375	0.375	$12.97
U37-2.62	2.625	3.375	0.375	0.375	$19.49
U37-2.62-62B	2.625	3.375	0.625	0.375	$22.26
UFN37-2.75-37P	2.75	3.5	0.375	0.375	$15.31
U37-2.75-50D	2.75	3.5	0.5	0.375	$23.55
U37-2.75-62Z	2.75	3.5	0.625	0.375	$28.42
U37-2.81	2.8125	3.5625	0.375	0.375	$25.22
U37-2.93	2.9375	3.6875	0.375	0.375	$25.22
U37-3.00-SQB	3	3.75	0.375	0.375	$25.22
UFN37-3.00-50P	3	3.75	0.5	0.375	$14.89
UPU37-3.00-62B	3	3.75	0.625	0.375	$92.55
U37-3.12-SQB	3.125	3.875	0.375	0.375	$24.08
U37-3.25V	3.25	4	0.375	0.375	$88.60
UFN37-3.25-50P	3.25	4	0.5	0.375	$17.09
U37-3.25-62Z	3.25	4	0.625	0.375	$32.91
U37-3.37	3.375	4.125	0.375	0.375	$25.65
U37-3.37-62B	3.375	4.125	0.625	0.375	$26.63
U37-3.50	3.5	4.25	0.375	0.375	$26.06
U37-3.50-50D	3.5	4.25	0.5	0.375	$29.13
UPU37-3.50-62B	3.5	4.25	0.625	0.375	$93.27
U37-3.62	3.625	4.375	0.375	0.375	$26.06
U37-3.62-50B	3.625	4.375	0.5	0.375	$30.12
U37-3.62-62Z	3.625	4.375	0.625	0.375	$45.99
U37-3.75-SQB	3.75	4.5	0.375	0.375	$26.63
U37-3.75-50D	3.75	4.5	0.5	0.375	$29.62
U37-3.75-62Z	3.75	4.5	0.625	0.375	$37.56
U37-3.87	3.875	4.625	0.375	0.375	$27.54
U37-4.00	4	4.75	0.375	0.375	$35.45
U37-4.00-50D	4	4.75	0.5	0.375	$29.83
U37-4.00-62Z	4	4.75	0.625	0.375	$48.92
U37-4.12	4.125	4.875	0.375	0.375	$29.20
U37-4.25V	4.25	5	0.375	0.375	$113.28
U37-4.25-50D	4.25	5	0.5	0.375	$32.92
U37-4.25-62Z	4.25	5	0.625	0.375	$39.94
U37-4.37	4.375	5.125	0.375	0.375	$30.75
U37-4.37-50Z	4.375	5.125	0.5	0.375	$68.02
U37-4.37-62B	4.375	5.125	0.625	0.375	$33.71
U37-4.50-SQB	4.5	5.25	0.375	0.375	$33.09
UPU37-4.50-62B	4.5	5.25	0.625	0.375	$115.77
U37-4.62	4.625	5.375	0.375	0.375	$33.35
U37-4.62-62B	4.625	5.375	0.625	0.375	$35.14
U37-4.75-50B	4.75	5.5	0.5	0.375	$36.13
UPU37-4.75-62B	4.75	5.5	0.625	0.375	$136.77
U37-4.75-SQB	4.75	5.5	0.375	0.375	$34.72
U37-4.87	4.875	5.625	0.375	0.375	$35.33
U37-4.87-62B	4.875	5.625	0.625	0.375	$36.36
U37-5.00-62B	4.875	5.75	0.625	0.375	$37.85
UPU37-5.00-62B	5	5.75	0.625	0.375	$126.88
U37-5.00V	5	5.75	0.375	0.375	$137.76
UPU37-5.25	5.25	6	0.375	0.375	$122.67
U37-5.25-50D	5.25	6	0.5	0.375	$39.45
U37-5.25-62Z	5.25	6	0.625	0.375	$49.93
U37-5.37	5.375	6.125	0.375	0.375	$37.34
U37-5.37-62B	5.375	6.125	0.625	0.375	$37.97
U37-5.50-62BV	5.5	6.25	0.625	0.375	$154.38
U37-5.50V	5.5	6.25	0.375	0.375	$149.91
U37-5.75	5.75	6.5	0.375	0.375	$39.82
U37-5.75-62Z	5.75	6.5	0.625	0.375	$53.76
U37-5.87	5.87	6.625	0.375	0.375	$40.42
U37-5.87-62B	5.875	6.625	0.625	0.375	$44.36
U37-6.00-56Z	6	6.75	0.5625	0.375	$74.93
U37-6.00-62BV	6	6.75	0.625	0.375	$164.62
U37-6.00-SQB	6	6.75	0.375	0.375	$43.23
U37-6.25V	6.25	7	0.375	0.375	$170.82
U37-6.25-50DV	6.25	7	0.5	0.375	$169.27
U37-6.25-62Z	6.25	7	0.625	0.375	$56.99
U37-6.37	6.375	7.125	0.375	0.375	$44.47
U37-6.50V	6.5	7.25	0.375	0.375	$208.05
U37-6.50-50B	6.5	7.25	0.5	0.375	$46.49
U37-6.50-62B	6.5	7.25	0.625	0.375	$46.49
U37-6.75-62B	6.75	7.5	0.625	0.375	$49.42
U37-6.87-62B	6.875	7.625	0.625	0.375	$48.92
U37-7.00	7	7.75	0.375	0.375	$47.50
U37-7.00-50B	7	7.75	0.5	0.375	$49.73
U37-7.00-62B	7	7.75	0.625	0.375	$49.73
U37-7.25V	7.25	8	0.375	0.375	$176.47
U37-7.25-50D	7.25	8	0.5	0.375	$62.30
U37-7.25-62DV	7.25	8	0.625	0.375	$195.80
U37-7.50-50B	7.5	8.25	0.5	0.375	$71.23
U37-7.75	7.75	8.5	0.375	0.375	$66.04
U37-7.75-62B	7.75	8.5	0.625	0.375	$57.01
U37-8.00-50D	8	8.75	0.5	0.375	$58.65
U37-8.00-62B	8	8.75	0.625	0.375	$58.65
U37-8.25	8.25	9	0.375	0.375	$55.14
U37-8.25-62B	8.25	9	0.625	0.375	$60.41
U37-8.75-62D	8.75	9.5	0.625	0.375	$60.41
U37-9.00	9	9.75	0.375	0.375	$63.18
U37-9.00-62B	9	9.75	0.625	0.375	$70.74
U37-9.25V	9.25	10	0.375	0.375	$217.60
U37-9.25-50D	9.25	10	0.5	0.375	$86.85
U37-9.25-62B	9.25	10	0.625	0.375	$85.25
U37-9.50	9.5	10.25	0.375	0.375	$72.30
U37-9.50-62B	9.5	10.25	0.625	0.375	$90.67
U37-9.75-62B	9.75	10.5	0.625	0.375	$87.56
U43-1.50	1.5	2.375	0.4375	0.4375	$13.14
U43-2.50	2.5	2.375	0.4375	0.4375	$23.20
U43-3.12	3.125	4	0.437	0.4375	$24.13
U43-3.87-75B	3.875	4.75	0.75	0.4375	$31.87
U43-4.50	4.5	5.375	0.4375	0.4375	$33.29
U43-4.75	4.75	5.625	0.4375	0.4375	$34.88
U43-4.75-75B	4.75	5.625	0.75	0.4375	$50.85
U43-5.12	5.125	6	0.4375	0.4375	$39.40
U43-5.25	5.25	6.125	0.4375	0.4375	$56.12
U50-1.00	1	2	0.5	0.5	$13.14
U50-1.25	1.25	2.25	0.5	0.5	$15.32
U50-1.50	1.5	2.5	0.5	0.5	$17.96
U50-1.75	1.75	2.75	0.5	0.5	$20.73
U50-1.87-62B	1.875	2.875	0.625	0.5	$23.16
U50-10.00-75B	10	11	0.75	0.5	$117.12
U50-10.50	10.5	11.5	0.5	0.5	$86.48
U50-10.62-75B	10.625	11.625	0.75	0.5	$128.71
U50-11.00	11	12	0.5	0.5	$88.50
U50-11.00-75B	11	12	0.75	0.5	$141.21
U50-11.50-75D	11.5	12.5	0.75	0.5	$161.39
U50-12.00-75B	12	13	0.75	0.5	$158.69
U50-13.00	13	14	0.5	0.5	$120.66
U50-13.00-75B	13	14	0.75	0.5	$193.97
U50-13.50-75D	13.5	14.5	0.75	0.5	$254.56
U50-14.00-75DZR	14	15	0.75	0.5	$463.46
U50-15.00	15	16	0.5	0.5	$152.54
U50-15.00-75B	15	16	0.75	0.5	$260.15
U50-15.50-75D	15.5	16.5	0.75	0.5	$273.92
U50-17.00-75B	14	18	0.75	0.5	$285.79
U50-2.00-75B	2	3	0.75	0.5	$23.91
U50-2.00-SQB	2	3	0.5	0.5	$22.57
U50-2.25	2.25	3.25	0.5	0.5	$22.57
U50-2.37-SQB	2.375	3.375	0.5	0.5	$24.60
U50-2.50	2.5	3.5	0.5	0.5	$26.00
U50-2.50-75B	2.5	3.5	0.75	0.5	$29.98
U50-2.75	2.75	3.75	0.5	0.5	$28.15
U50-3.00	3	4	0.5	0.5	$30.33
UFN50-3.00-62P	3	4	0.625	0.5	$15.94
U50-3.00-75D	3	4	0.75	0.5	$45.44
U50-3.25	3.25	4.25	0.5	0.5	$32.26
U50-3.50	3.5	4.5	0.5	0.5	$34.36
U50-3.50-75D	3.5	4.5	0.75	0.5	$38.23
U50-3.62	3.625	4.625	0.5	0.5	$33.26
U50-3.75	3.75	4.75	0.5	0.5	$35.77
U50-4.00V	4	5	0.5	0.5	$146.30
U50-4.00-67D	4	5	0.67	0.5	$45.89
UFN50-4.00-75P	4	5	0.75	0.5	$23.89
U50-4.25	4.25	5.25	0.5	0.5	$40.23
U50-4.25-75B	4.25	5.25	0.75	0.5	$43.49
U50-4.50	4.5	5.5	0.5	0.5	$42.47
U50-4.50-75B	4	5.5	0.75	0.5	$46.84
UFN50-4.50-75P	4.5	5.5	0.75	0.5	$31.14
U50-4.75	4.75	5.75	0.5	0.5	$44.41
U50-4.75-69B	4.75	5.75	0.6875	0.5	$49.15
UPU50-5.00	5	6	0.5	0.5	$179.54
U50-5.00-75D	5	6	0.75	0.5	$49.52
U50-5.25	5.25	6.25	0.5	0.5	$48.56
U50-5.37-75B	5.375	6.375	0.75	0.5	$61.66
U50-5.50	5.5	6.5	0.5	0.5	$49.31
U50-5.50-75D	5.5	6.5	0.75	0.5	$52.28
U50-5.75	5.75	6.75	0.5	0.5	$50.76
U50-5.75-75B	5.75	6.75	0.75	0.5	$66.90
UFN50-6.00-75P	6	7	0.75	0.5	$81.86
U50-6.00V	6	7	0.5	0.5	$214.25
U50-6.25	6.25	7.25	0.5	0.5	$54.44
U50-6.50	6.5	7.5	0.5	0.5	$54.81
U50-6.50-75B	6.5	7.5	0.75	0.5	$55.20
U50-6.75-75B	6.75	7.75	0.75	0.5	$55.20
U50-7.00V	7	8	0.5	0.5	$219.97
U50-7.00-75B	7	8	0.75	0.5	$59.17
U50-7.25	7.25	8.25	0.5	0.5	$63.41
U50-7.50	7.5	8.5	0.5	0.5	$63.55
U50-7.50-75D	7.5	8.5	0.75	0.5	$65.44
U50-8.00V	8	9	0.5	0.5	$245.36
U50-8.00-75D	8	9	0.75	0.5	$67.29
U50-8.50	8.5	9.5	0.5	0.5	$67.93
U50-8.50-75B	8.5	9.5	0.75	0.5	$75.31
U50-8.75	8.75	9.75	0.5	0.5	$96.76
U50-9.00V	9	10	0.5	0.5	$273.06
U50-9.00-75B	9	10	0.75	0.5	$78.76
U50-9.25-75B	9.25	10.25	0.75	0.5	$80.25
U50-9.50	9.5	10.5	0.5	0.5	$80.25
U62-1.25	1.25	2.5	0.625	0.625	$21.07
U62-1.75	1.75	3	0.625	0.625	$29.83
U62-10.00-100B	10	11.25	1	0.625	$159.28
U62-12.00	12	13.25	0.625	0.625	$157.34
U62-14.00-100D	14	15.25	1	0.625	$302.34
U62-14.75-100B	14.75	16	1	0.625	$283.33
U62-2.75	2.75	4	0.625	0.625	$33.90
U62-3.00	3	4.25	0.625	0.625	$34.80
U62-3.25	3.25	4.5	0.625	0.625	$39.34
U62-3.50	3.5	4.75	0.625	0.625	$42.39
U62-3.75	3.75	5	0.625	0.625	$43.08
U62-4.00	4	5.25	0.625	0.625	$47.50
U62-4.25	4.25	5.5	0.625	0.625	$49.60
U62-4.75	4.75	6	0.625	0.625	$55.36
U62-4.75-75D	4.75	6	0.75	0.625	$60.95
U62-5.00	5	6.25	0.625	0.625	$61.23
U62-5.25	5.25	6.5	0.625	0.625	$61.59
U62-5.50	5.5	6.75	0.625	0.625	$71.05
U62-5.75	5.75	7	0.625	0.625	$66.64
U62-6.00	6	7.25	0.625	0.625	$72.71
U62-6.25	6.25	7.5	0.625	0.625	$74.12
U62-7.00-100B	7	8.25	1	0.625	$86.83
U62-7.25	7.25	8.5	0.625	0.625	$82.75
U62-8.00	8	9.25	0.625	0.625	$89.11
U62-8.50	8.5	9.75	0.625	0.625	$101.30
U62-9.00	9	10.25	0.625	0.625	$113.84
U62-9.50	9.5	10.75	0.625	0.625	$139.67
U62-9.75	9.75	11	0.625	0.625	$120.20
U75-10.00	10	11.5	0.75	0.75	$163.62
U75-10.50	10.5	12	0.75	0.75	$142.57
U75-11.00	11	12.5	0.75	0.75	$156.10
U75-12.50	12.5	14	0.75	0.75	$196.21
U75-14.00	14	15.5	0.75	0.75	$236.34
U75-14.50	14.5	16	0.75	0.75	$260.41
U75-3.50-SQB	3.5	5	0.75	0.75	$57.97
U75-4.50	4.5	6	0.75	0.75	$63.45
U75-6.50	6.5	8	0.75	0.75	$81.94
U75-7.00	7	8.5	0.75	0.75	$88.46
U75-8.00	8	9.5	0.75	0.75	$102.02
U75-9.50	9.5	11	0.75	0.75	$134.37
UFN12-0.50-18P	0.5	0.75	0.1875	0.125	$5.76
UFN12-0.62-18P	0.625	0.875	0.1875	0.125	$5.76
UFN12-0.87-15P	0.875	1.125	0.1562	0.125	$6.04
UFN12-1.12-18EI	1	1.375	0.1875	0.125	$10.13
UFN12-1.12-18P	1.125	1.375	0.1875	0.125	$6.33
UFN15-0.25-25P	0.25	0.5625	0.1562	0.125	$6.79
UFN15-0.31-25P	0.3125	0.625	0.1562	0.125	$5.76
UFN15-2.00-25EI	2	2.3125	0.25	0.1562	$11.85
UFN16-0.18-25P	0.1875	0.5	0.25	0.16	$11.21
UFN17-0.75-28EI	0.75	1.09	0.2812	0.17	$7.52
UFN18-0.50-28P	0.5	0.875	0.2812	0.1875	$5.76
UFN18-0.62-28P	0.625	1	0.2812	0.1875	$5.76
UFN18-0.87-37P	0.875	1.25	0.375	0.1875	$8.12
UFN18-1.12-21P	1.125	1.5	0.2187	0.1875	$8.97
UFN18-1.25-28P	1.25	1.625	0.2812	0.1875	$5.54
UFN18-1.37-28P	1.375	1.75	0.2812	0.1875	$6.95
UFN18-1.50-17P	1.5	1.875	0.17	0.1875	$7.67
UFN18-1.50-25P	1.5	1.875	0.25	0.1875	$7.22
UFN18-1.50-28EI	1.5	1.875	0.2812	0.1875	$9.53
UFN18-1.75-17P	1.75	2.125	0.17	0.1875	$9.27
UFN18-1.75-28P	1.75	2.125	0.2812	0.1875	$8.56
UFN18-1.75-30EI	1.75	2.125	0.3	0.1875	$11.07
UFN18-2.25-17P	2.25	2.625	0.17	0.1875	$10.63
UFN18-2.25-25P	2.25	2.625	0.25	0.1875	$20.02
UFN21-2.00-41EI-SAG-F	2	2.4375	0.4	0	$40.38
UFN21-2.75-41EI-SAG-F	2.75	3.1875	0.41	0	$64.88
UFN22-0.56-28P	0.5625	1	0.2812	0.22	$7.22
UFN22-1.12-34EI	1.125	1.5625	0.34	0.2187	$8.95
UFN22-2.75-75BR-L-F	2.25	3.2	0.75	0	$27.21
UFN25-0.75-31P	0.75	1.25	0.3125	0.25	$6.33
UFN25-1.00-25EI	1	2.5	0.25	0.25	$10.01
UFN25-1.25-28P	1.25	1.75	0.2812	0.25	$5.81
UFN25-1.50-28P	1.5	2	0.2812	0.25	$8.04
UFN25-1.50-46EI	1.5	2	0.46	0.25	$9.53
UFN25-3.50-37EI	3.5	3.5	0.375	0.25	$29.59
UFN25-3.50-46EI-SAG-F	3.5	4	0.4687	0	$65.42
UFN25-3.50-75BR-L-F	3.5	4.01	0.75	0	$30.19
UFN25-4.37-46EI-SAG-F	4.375	4.875	0.4687	0.3125	$104.34
UFN25-4.37-75BR-L-F	4.375	4.875	0.75	0	$35.72
UFN27-0.87-46UWO	0.875	1.41	0.46	0	$8.52
UFN28-6.31-75BR-L-F	6.3125	6.875	0.75	0	$63.45
UFN31-0.87-37P	0.875	1.5	0.375	0.3125	$9.27
UFN31-1.00-43P	1	1.625	0.4375	0.3125	$6.62
UFN31-1.12-43P	1.125	1.75	0.4375	0.3125	$6.93
UFN31-1.12-43PWO	1.125	1.75	0.4375	0	$10.88
UFN31-1.16-46UWO	1.16	1.78	0.46	0	$9.11
UFN31-1.25-31P	1.25	1.875	0.3125	0	$7.66
UFN31-1.25-43P	1.25	1.875	0.4375	0.3125	$7.08
UFN31-1.37-37UWO	1.375	2	0.375	0	$11.74
UFN31-1.37-43P	1.375	2	0.4375	0.3125	$7.82
UFN31-1.37-43PWO	1.375	2	0.4375	0	$12.17
UFN31-1.50-46P	1.5	2.125	0.46	0.3125	$9.27
UFN31-1.62-43P	1.625	2.25	0.4375	0.3125	$10.78
UFN31-1.62-43UWO	1.625	2.25	0.4375	0	$11.58
UFN31-1.75-43P	1.75	2.375	0.4375	0.3125	$9.84
UFN31-1.75-43UWO	1.75	2.375	0.4375	0	$14.24
UFN31-1.87-37UWO	1.875	2.5	0.375	0	$13.25
UFN31-1.87-43P	1.875	2.5	0.4375	0.3125	$11.95
UFN31-1.87-43PWO	1.875	2.5	0.4375	0	$17.31
UFN31-2.00-43UWO	2	2.625	0.4375	0	$12.50
UFN31-2.00-43P	2	2.625	0.4375	0.3125	$10.78
UFN31-2.12-37P	2.125	2.75	0.375	0.3125	$9.26
UFN31-2.12-46UWO	2.125	2.75	0.46	0	$14.97
UFN31-2.37-46P	2.375	3	0.46	0.3125	$11.26
UFN31-5.25-46EI-SAG-F	5.25	5.875	0.46	0	$149.88
UFN31-8.37-75BR-L-F	8.375	9	0.75	0	$122.85
UFN32-7.31-75BR-L-F	7.3125	7.95	0.75	0	$86.17
UFN34-1.50-43EI	1.5	1.032	0.4375	0.3437	$12.13
UFN37-1.50-47P	1.5	2.25	0.47	0.375	$11.80
UFN37-1.75-50P	1.75	2.5	0.5	0.375	$13.55
UFN37-2.00-43P	2	2.75	0.4375	0.375	$13.29
UFN37-2.00-56P	2	2.75	0.5625	0.375	$11.80
UFN37-2.00-56UWO	2	2.75	0.5625	0	$19.25
UFN37-2.12-56P	2.125	2.875	0.5625	0.375	$9.75
UFN37-2.25-50UWO	2.25	3	0.5	0	$18.32
UFN37-2.25-56P	2.25	3	0.5625	0.375	$11.80
UFN37-2.50-56P	2.5	3.25	0.5625	0.375	$13.55
UFN37-2.75-56P	2.75	3.5	0.5625	0.375	$16.39
UFN37-2.75-56UWO	2.75	3.5	0.5625	0	$17.76
UFN37-3.00-56P	3	3.75	0.5625	0.375	$15.04
UFN37-3.00-56WI-S-F	3	3.75	0.5625	0	$37.65
UFN37-3.25-56P	3.25	4	0.5625	0.375	$17.97
UFN37-3.25-56UWO	3.25	4	0.5625	0	$19.81
UFN37-3.50-56P	3.5	4.25	0.5625	0.375	$18.73
UFN37-3.50-56UEO	3.5	4.25	0.5625	0	$25.12
UFN37-3.62-56WI-S-F	3.625	4.375	0.5625	0	$31.99
UFN37-3.75-56UWO	3.75	4.5	0.5625	0	$28.93
UFN37-4.37-56WI-S-F	4.375	5.125	0.5625	0	$44.47
UFN37-5.25-56WI-S-F	5.25	6	0.5625	0	$53.11
UFN37-6.31-56WI-S-F	6.3125	7.0625	0.5625	0	$77.50
UFN37-7.31-56WI-S-F	7.3125	8.0625	0.5625	0	$95.93
UFN39-9.43-100BR-L-F	9.4375	10.21	1	0	$200.81
UFN50-4.00-75UEO	4	5	0.75	0	$36.71
UFN50-8.37-68WI-S-F	8.375	9.375	0.6875	0	$114.54
UFN59-1.81-100P	1.81	3	1	0.59	$22.85
UKP09-0.37	0.375	0.1875	0.0937	0.0937	$4.24
UKP09-0.68	0.6875	0.5	0.0937	0.0937	$4.53
UKP12-1.00	1	0.75	0.125	0.125	$5.96
UKP12-1.12	1.125	0.875	0.125	0.125	$5.96
UKP12-1.50	1.5	1.25	0.125	0.125	$10.52
UKP12-2.00	2	1.75	0.125	0.125	$10.60
UKP12-2.75	2.75	2.5	0.125	0.125	$7.97
UKP15-1.50	1.5	1.1875	0.1562	0.1562	$6.38
UKP15-1.56	1.5625	1.25	0.1562	0.1562	$6.38
UKP18-2.00	2	1.625	0.1875	0.1875	$6.75
UKP18-2.50	2.5	2.125	0.1875	0.1875	$7.15
UKP21-3.00	3	2.5625	0.2187	0.2187	$13.75
UKP21-3.25	3.25	2.8725	0.2187	0.2187	$14.95
UKP25-10.00	10	9.5	0.25	0.25	$62.69
UKP25-3.00	3	2.5	0.25	0.25	$14.26
UKP25-3.25	3.25	2.75	0.25	0.25	$15.46
UKP25-3.50	3.5	3	0.25	0.25	$16.65
UKP25-4.00	4	3.5	0.25	0.25	$19.04
UKP25-5.00	5	4.5	0.25	0.25	$23.97
UKP25-6.00	6	5.5	0.25	0.25	$28.54
UKP25-7.00	7	6.5	0.25	0.25	$44.05
UKP25-8.00	8	7.5	0.25	0.25	$47.02
UKP31-6.00	6	5.375	0.3125	0.3125	$34.25
UKP31-8.00	8	7.375	0.3125	0.3125	$45.46
UKP37-10.00	10	9.25	0.375	0.375	$76.75
UKR09-0.50	0.5	0.6875	0.0937	0.0937	$4.29
UPU18-1.50	1.5	1.875	0.1875	0.1875	$68.45
UPU12-0.25	0.25	0.5	0.125	0.125	$15.87
UPU18-1.50-37B	1.5	1.875	0.375	0.1875	$29.87
UPU18-2.50	1.5	2.875	0.1875	0.1875	$33.07
UPU18-2.87	2.85	3.25	0.1875	0.1875	$35.11
UPU25-4.00	4	4	0.25	0.25	$60.49
UPU25-5.00-37B	5	2	0.375	0.25	$103.70

U U-SEALS

UFN-P U-SEALS

HMU HOMOGENEOUS ROD U-SEALS

CTC – 2 PIECE ROD BUFFER SEALS

U-Z U-SEALS

U U-SEALS

Related products

UFN-P U-SEALS

HMU HOMOGENEOUS ROD U-SEALS

CTC – 2 PIECE ROD BUFFER SEALS

U-Z U-SEALS
