This wiper is a heavy duty scraper molded from a hard nylon material.
| SEAL INFORMATION | |
|---|---|
| MATERIAL | NYLON |
| TEMPERATURE RANGE | -40° to +212° F |
| SPEED | 3 FT/SEC |
| PART NUMBER | (Prefix) - (ID) x (OD) X (H) |
-
-
Internal Retainer Ring
-
External Retainer Rings
-
Installed as 2 halves in a closed groove, these bushings are found in many Japanese lift trucks.
SEAL INFORMATION MATERIAL 660 BRONZE SPEED 3 FT/SEC PART NUMBER (Prefix) - (ID) x (OD) X (H) -
Hard nylon back-up rings for use with U-seals.
SEAL INFORMATION MATERIAL NYLON TEMPERATURE RANGE -67° to +212° F PRESSURE RANGE 0 to 5,000 PSI SPEED 3 FT/SEC PART NUMBER (Prefix) - (ID) - (C.S) - (W) SCS PART NUMBERS MBN - 75 X 2.5 X 2.5 Type of Seal Inside
DiameterCross
SectionWidth -
Placed in adjacent grooves on each side of style MPS piston seals they prevent cold flow or extrusion at high pressures.
SEAL INFORMATION MATERIAL NYLON TEMPERATURE RANGE -65° to +220° F PRESSURE RANGE 0 to 5,000 PSI PART NUMBER (Prefix) - (ID) x (CS) x (W) -
SEAL INFORMATION MATERIAL BRONZE SPEED 3 FT/SEC PART NUMBER (Prefix) - (OD) x (W) x (RW) -
Commonly used with metric o-rings, these back-up rings are made of virgin PTFE unless suffix specifies otherwise.
STANDARD IS VIRGIN PTFE
G = GLASS FILLED PTFE
B = BRONZE FILLED PTFE
CG = CARBON GRAPHITE FILLED PTFE
S = SPLIT RINGSEAL INFORMATION MATERIAL PTFE TEMPERATURE RANGE -100° to +500° F PART NUMBER (Prefix) - (ID) x (CS) x (W) SCS PART NUMBERS MBT - 3 X 1.5 X 1.25 Type of Seal Inside
DiameterCross
SectionWidth -
SEAL INFORMATION MATERIAL 95A DUROMETER URETHANE TEMPERATURE RANGE -40° to +200° F PART NUMBER (Prefix) - (ID) x (CS) x (W) SCS PART NUMBERS MBU - 6 X 2 X 1.3 Type of Seal Inside
DiameterCross
SectionWidth -
Utilizing a double lip of nitrile bonded to a carbon steel case, this wiper prevents contaminant ingression at the wiping lip and around the outer case.
SEAL INFORMATION MATERIAL 80A NITRILE TEMPERATURE RANGE -20° to +250° F PART NUMBER (Prefix) - (ID) x (OD) X (H) -
Utilizing a double lip of nitrile bonded to a carbon steel case, this wiper prevents contaminant ingression at the wiping lip and around the outer case.
SEAL INFORMATION MATERIAL URETHANE TEMPERATURE RANGE -30° to +200° F SPEED 3 FT/SEC -
This capped piston seal consists of a filled PTFE cap, a T-shaped NBR energizer, and two split nylon backup rings. It exhibits low friction, high sealability, and excellent resistance to extrusion and wear.SEAL INFORMATION MATERIAL PTFE PISTON SEAL NYLON BACK-UP NITRILE ENERGIZER TEMPERATURE RANGE -40° to +220° F PRESSURE RANGE 0 to 6,000 PSI SPEED 4.5 FT/SEC SUFFIX BR= BRONZE FILLED PTFE CAP PART NUMBER (Prefix) - (OD) x (ID) x (W) -
Molded in urethane, this wiper features a lip on the outer diameter to aid in contaminant exclusion.
SEAL INFORMATION MATERIAL URETHANE TEMPERATURE RANGE -30° to +200° F SPEED 3 FT/SEC PART NUMBER (Prefix) - (ID) x (OD) X (H) -
This seal is single cased with a urethane lip and used to exclude contaminants from cylinder link pins.
SEAL INFORMATION MATERIAL URETHANE SEAL
STEEL CASETEMPERATURE RANGE -30° to +200° F PART NUMBER (Prefix) - (ID) x (OD) x (H) -
This wiper is a molded from high grade urethane and bonded to a carbon steel case in a single lip design.
SEAL INFORMATION MATERIAL URETHANE TEMPERATURE RANGE -40° to +200° F SPEED 3 FT/SEC PART NUMBER (Prefix) - (ID) x (OD) X (H) -
This wiper is a single lip design molded from high grade urethane and bonded to a carbon steel case.
SEAL INFORMATION MATERIAL URETHANE TEMPERATURE RANGE -30° to +200° F SPEED 3 FT/SEC PART NUMBER (Prefix) - (ID) x (OD) X (H) -
This wiper is a single lip design molded from high grade nitrile and bonded to a carbon steel case.
SEAL INFORMATION MATERIAL NITRILE TEMPERATURE RANGE -30° to +220° F PART NUMBER (Prefix) - (ID) x (OD) X (H) -
Molded from high grade urethane and bonded to a carbon steel case, this wiper utilizes a stainless steel finger spring to maintain a high radial force on the rod
SEAL INFORMATION MATERIAL URETHANE TEMPERATURE RANGE -40° to +200° F PART NUMBER (Prefix) - (ID) x (OD) X (H) -
Molded in nitrile, this wiper is for light duty applications.
SEAL INFORMATION MATERIAL NITRILE TEMPERATURE RANGE -22° to +212° F SPEED 3 FT/SEC PART NUMBER (Prefix) - (ID) x (OD) X (H) -
Molded in nitrile with steel case, this seal is double cased and used to exclude contaminants from cylinder link pins.
SEAL INFORMATION MATERIAL NITRILE SEAL
STEEL CASETEMPERATURE RANGE -40° to +220° F PART NUMBER (Prefix) - (ID) x (OD) X (H) -
Molded in urethane with a steel case, this seal is double cased and used to exclude contaminants from cylinder link pins.
SEAL INFORMATION MATERIAL URETHANE LIP STEEL CASE
STEEL CASETEMPERATURE RANGE -30° to +200° F SPEED 3 FT/SEC -
With a steel body, bronze liner and PTFE / lead overlay, these bushings possess excellent wearability and tremendous compressive strength.
SEAL INFORMATION MATERIAL BRONZE LINING
PTFE/LEAD OVERLAY
STEEL BACKINGTEMPERATURE RANGE -325° to +536° F SPEED 12 FT/SEC COMPRESSIVE STRENGTH 44,000 PSI PART NUMBER (Prefix) - (ID) x (OD) X (H) -
Manufactured to a large variety of widths and thicknesses, this material affords low friction capabilities but with low compressive strength. The material also has the capability of ingesting metal particles and keeping them from the seal area.
NOTE: List Price = 1 Foot (12")SEAL INFORMATION MATERIAL 60% BRONZE FILLED PTFE TEMPERATURE RANGE -50° to +390° F SPEED 12 FT/SEC COMPRESSIVE STRENGTH 1,700 PSI PART NUMBER (Prefix) - (W) x (TH) -
Fabricated from woven fabric and polyester resins, this material can be cut to length to fit rod or piston grooves.
NOTE: List Price = 1 Foot (12")
TQ16 - Sold in rolls of 16 foot sectionsSEAL INFORMATION MATERIAL FABRICATED REINFORCED POLYESTER TEMPERATURE RANGE -30° to +265° F SPEED 3 FT/SEC COMPRESSIVE STRENGTH 24,000 PSI PART NUMBER (Prefix) - (W) x (TH) -
The MHMU style multi-lip rod u-seal combines the pressure-compensating, uni-directional characteristics of a u-seal with the multi-lip sealing effectiveness of compression-type stacked-packings. Made from premium materials, the MHMU utilizes several sealing lip edges for dry rod performance while minimizing friction. The multi-lip design maintains a critical sealing edge even though increasing pressure moves the line of contact down towards the heel.
SEAL INFORMATION MATERIAL URETHANE TEMPERATURE RANGE -50° to +230° F PRESSURE RANGE 0 to 5,000 PSI SPEED 3 FT/SEC PART NUMBER (Prefix) - (ID) x (OD) x (H) -
Molded from 70A nitrile for high sealability they employ a hard nylon anti-extrusion ring as a companion piece.
SEAL INFORMATION MATERIAL 70A NITRILE
NYLON BACK-UPTEMPERATURE RANGE -20° to +220° F PRESSURE RANGE 0 to 3,000 PSI SPEED 3 FT/SEC PART NUMBER (PREFIX) - (OD) -
Molded from 70A nitrile for high sealability they employ a hard nylon anti-extrusion ring as a companion piece.
SEAL INFORMATION MATERIAL 70A NITRILE
ACETAL BACK-UPTEMPERATURE RANGE -20° to +220° F PRESSURE RANGE 0 to 4,000 PSI SPEED 3 FT/SEC PART NUMBER (PREFIX) - (OD) -
Molded from 70A nitrile for high sealability they employ a hard nylon anti-extrusion ring as a companion piece.
SEAL INFORMATION MATERIAL 70A NITRILE
ACETAL BACK-UPTEMPERATURE RANGE -20° to +220° F PRESSURE RANGE 0 to 4,000 PSI SPEED 3 FT/SEC PART NUMBER (PREFIX) - (OD) -
Molded from urethane for resistance to extrusion and abrasion, they employ a hard nylon anti-extrusion ring.
SEAL INFORMATION MATERIAL URETHANE SEAL
NYLON BACK-UPTEMPERATURE RANGE -40° to +200° F SPEED 3 FT/SEC PRESSURE RANGE 0 to 3,000 PSI -
Molded in polyurethane this buffer is a simple flat, washer-like profile
SEAL INFORMATION MATERIAL URETHANE TEMPERATURE RANGE -40° to +200° F PRESSURE RANGE 0 to 5,000 PSI SPEED 3 FT/SEC PART NUMBER (Prefix) - (ID) x (OD) x (H) -
A double acting piston seal with many features; two compact seal edges to concentrate the load against the dynamic surface, a cavity between the two external seal edges to retain fluid (reducing friction and wear), side grooves to allow pressure to load the energizer in all working conditions, high sealing performance at low pressure, excellent wear-resistance, and high resistance against extrusion.
SEAL INFORMATION MATERIAL 97A URETHANE SEAL
70A NITRILE EXPANDERTEMPERATURE RANGE -22° TO +210° F PRESSURE RANGE 0 TO 5,800 PSI SPEED 1.5 FT/SEC PART NUMBER (Prefix) - (OD) x (ID) x (W) MAXIMUM EXTRUSION GAP Pressure (PSI) 725 1450 2900 4350 5800 Max Diametrical Gap (inches) 0.047 0.031 0.016 0.010 0.007 -
A double acting piston seal with many features; two compact seal edges to concentrate the load against the dynamic surface, a cavity between the two external seal edges to retain fluid (reducing friction and wear), side grooves to allow pressure to load the energizer in all working conditions, high sealing performance at low pressure, excellent wear-resistance, and high resistance against extrusion.
SEAL INFORMATION MATERIAL 97A URETHANE SEAL
70A NITRILE EXPANDERTEMPERATURE RANGE -22° TO +210° F PRESSURE RANGE 0 TO 5,800 PSI SPEED 1.5 FT/SEC PART NUMBER (Prefix) - (OD) x (ID) x (W) MAXIMUM EXTRUSION GAP Pressure (PSI) 725 1450 2900 4350 5800 Max Diametrical Gap (inches) 0.047 0.031 0.016 0.010 0.007 -
Molded in PTFE with a rubber energizer, this seal absorbs the shock of pressure spikes protecting the rod seal.
SEAL INFORMATION MATERIAL FILLED PTFE BUFFER
70A NITRILE
ENERGIZERTEMPERATURE RANGE -40° to +220° F PRESSURE RANGE 0 to 5,000 PSI SPEED 12 FT/SEC PART NUMBER (Prefix) - (ID) x (OD) x (H) -
Molded in PTFE with a rubber energizer and a nylon anti-extrusion ring, this seal absorbs the shock of pressure spikes protecting the rod seal.
SEAL INFORMATION MATERIAL PTFE BUFFER
70A NBR ENERGIZER
NYLON BACK-UPTEMPERATURE RANGE -40° to +220° F PRESSURE RANGE 0 to 5,000 PSI SPEED 3 FT/SEC PART NUMBER (Prefix) - (ID) x (OD) x (H) -
For two piece pistons, this seal incorporates a nitrile / fabric seal with two split bearings.
SEAL INFORMATION MATERIAL NITRILE SEAL
ACETAL BEARINGTEMPERATURE RANGE -22° to +190° F PRESSURE RANGE 0 to 5,000 PSI SPEED 1.5 FT/SEC -
Please specify 75 or 90 Durometer when ordering. Metric o-rings are offered in minimum package quantities (MP in chart).
SEAL INFORMATION - 70 DURO MOR-JIS STYLE MATERIAL 70A DURO NITRILE TEMPERATURE RANGE -40° to +220° F PART NUMBER (Prefix) - (ID) x (CS) SEAL INFORMATION - 70 DURO NITRILE MATERIAL 70A DURO NITRILE TEMPERATURE RANGE -40° to +220° F PART NUMBER (Prefix) - (ID) x (CS) SEAL INFORMATION - 75 DURO FLUOROCARBON MATERIAL 75A DURO FLUOROCARBON TEMPERATURE RANGE -20° to +400° F PART NUMBER (Prefix) - (ID) x (CS) SEAL INFORMATION - 90 DURO NITRILE MATERIAL 90A DURO NITRILE TEMPERATURE RANGE -40° to +220° F PART NUMBER (Prefix) - (ID) x (CS) -
SEAL INFORMATION MATERIAL RUBBER SEAL
STEEL CASETEMPERATURE RANGE -40° TO +225° F PRESSURE RANGE 10 PSI @ 1000 FPM PART NUMBER (Prefix) - (ID) X (OD) X (H) -
Molded from filled PTFE and machined to close tolerances these seals feature low friction and excellent wear characteristics. Nitrile o-rings are used for energizers.
SEAL INFORMATION MATERIAL PTFE PISTON SEAL
70A NITRILE ENERGIZERTEMPERATURE RANGE -40° TO +230° F PRESSURE RANGE 0 TO 5,000 PSI SPEED 12 FT/SEC PART NUMBER (Prefix) - (ID) x (W) x (CS1) -
Molded from filled PTFE and machined to close tolerances these seals feature low friction and excellent wear characteristics. Nitrile o-rings are used for energizers.
SEAL INFORMATION MATERIAL PTFE PISTON SEAL
70A NITRILE ENERGIZERTEMPERATURE RANGE -40° TO +230° F PRESSURE RANGE 0 TO 5,000 PSI SPEED 12 FT/SEC PART NUMBER (Prefix) - (ID) x (W) x (CS1) -
The MPS2000 double action piston seal is designed for heavy duty hydraulic applications. The small profile is resistant to shock loads and has high abrasion and extrusion resistance. Its split design allows simple installation on a solid piston.
SEAL INFORMATION MATERIAL NYLON SEAL WITH NITRILE ENERGIZER TEMPERATURE RANGE -22° TO +230° F PRESSURE RANGE 0 TO 7250 PSI SPEED 3 FT/SEC PART NUMBER (Prefix) - (Bore Size) -
Designed to fit on one or two piece piston, this piston seal employs a nitrile seal for high sealability, nylon split back-ups for extrusion resistance, and two split bearing rings. No further support bearings required.
SEAL INFORMATION MATERIAL 70A NBR SEAL
NYLON BACK-UP & BEARINGTEMPERATURE RANGE -22° TO +212° F PRESSURE RANGE 0 TO 6,000 PSI SPEED 1.5 FT/SEC -
With nitrile seal bonded on each side by fabric material it also incorporates 2 full depth 'L' bearings to form a very strong assembly. This seal requires a two piece piston.
SEAL INFORMATION MATERIAL 70A NBR / FABRIC SEAL
ACETAL BEARING / BACK-UPTEMPERATURE RANGE -22° TO +212° F PRESSURE RANGE 0 TO 5,000 PSI SPEED 1.5 FT/SEC -
This style is designed for two piece pistons. The seal is a molded Nitrile rubber element with bonded rubberized fabric reinforcements and two anti-extrusion polyacetal bearings.
SEAL INFORMATION MATERIAL 70A NBR / FABRIC SEAL
ACETAL BEARING / BACK-UPTEMPERATURE RANGE -22° to +212° F PRESSURE RANGE 0 to 5,000 PSI SPEED 1.5 FT/SECtd> -
Consisting of a nitrile seal and two split acetal bearing, this assembly is used in light duty applications and can be installed on one or two piece pistons.
SEAL INFORMATION MATERIAL NITRILE SEAL
ACETAL BEARINGTEMPERATURE RANGE -22° to +212° F PRESSURE RANGE 0 to 3,000 PSI SPEED 1.5 FT/SEC -
Incorporating a nitrile / fabric seal with two split bearing this assembly affords low friction and high strength for one or two piece pistons.
SEAL INFORMATION MATERIAL 70A NBR / FABRIC SEAL OD
70A NBR SEAL ID
ACETAL BEARINGTEMPERATURE RANGE -22° TO +212° F PRESSURE RANGE 0 TO 5,000 PSI -
Molded from tough, wear resistant polyester with additives of 5% glass fiber and 5% PTFE these seals are totally interchangeable with style MPS seals of the same dimensions. Nitrile o-rings are used as energizers.
SEAL INFORMATION MATERIAL GLASS / PTFE FILLED POLYESTER SEAL, RUBBER ENERGIZER TEMPERATURE RANGE -40° to +230° F PRESSURE RANGE 0 to 5,000 PSI PART NUMBER (Prefix) - (ID) x (W) x (CS1) -
Molded from tough, wear resistant polyester with additives of 5% glass fiber and 5% PTFE these seals are totally interchangeable with style MPS seals of the same dimensions. Nitrile o-rings are used as energizers.
SEAL INFORMATION MATERIAL GLASS / PTFE FILLED POLYESTER SEAL, RUBBER ENERGIZER TEMPERATURE RANGE -40° to +230° F PRESSURE RANGE 0 to 5,000 PSI PART NUMBER (Prefix) - (ID) x (W) x (CS1) -

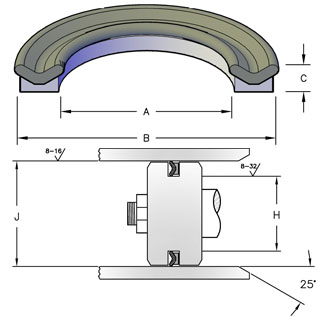

Molded from high quality urethane and designed specifically for piston applications. A = Alternative to NOK
SEAL INFORMATION MATERIAL URETHANE TEMPERATURE RANGE -22° to +212° F PRESSURE RANGE 0 to 5,000 PSI SPEED 3 FT/SEC PART NUMBER (Prefix)-(ID) x (OD) x (H)
